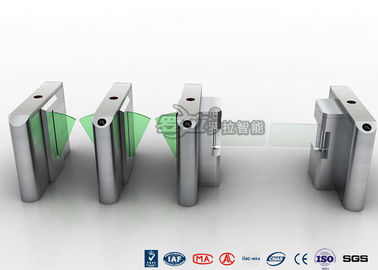

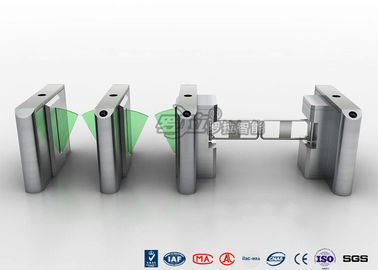

Stylish Clear Bi - Directional Turnstile Access Control With Swing Panel

Stylish Clear Bi - Directional Turnstile Access Control With Swing Panel

    • Stylish Clear Bi - Directional Turnstile Access Control With Swing Panel
    • Stylish Clear Bi - Directional Turnstile Access Control With Swing Panel
  • Stylish Clear Bi - Directional Turnstile Access Control With Swing Panel

    Szczegóły Produktu:

    Place of Origin: China
    Nazwa handlowa: RONA
    Orzecznictwo: CE / ISO9001
    Model Number: Customized

    Zapłata:

    Minimum Order Quantity: 1 Lane
    Cena: negotiation
    Packaging Details: carton and wooden packing
    Czas dostawy: 7-15 dni roboczych
    Payment Terms: T/T, Western Union
    Możliwość Supply: 2000 jednostek miesięcznie
    Skontaktuj się teraz
    Szczegółowy opis produktu
    Materials: 304# Stainless Steel Finish: brushed surface/polishing surface
    Power voltage: AC220V±10%, 50Hz±10% Operation temperature:: -10℃ ~ +70℃
    communication Port: RS232 / RS485 Relative humidity: less than 95% not condensed
    Working Environment: Indoor/Outdoor (with rain-tent cover) Input port: relay dry contact signal; +12V level signal, pulse width >100ms, DC12V pulse signal

    CE Approved Turnstile Security Systems / Falp Barrier and Swing Gate With Stainless Steel



    PRODUCT DESCRIPTIONS:

    The turnstile system combines slim line styling with one of the industries widest passages. It has clear, bi-directional swinging motorized barrier panels and a stylish, architectural design that enhances any access control installation. Its sleek design and smaller footprint makes it compatible with any upscale business or institutional environment.



    The turnstile system controls pedestrian access between public and secure areas. The fastlane turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities, such as access control system, time & attendance system, consumption system, ESD system and fare collection system, biometric systems (fingerprint & face recognition), bar-code scanner, Token/ID/IC card reader, coin collector and card collector, etc.



    SPECIFICATIONS:

    Framework 304# Stainless Steel (default), 201# or 316# Stainless Steel or paint (optional)
    Thickness of ply 1.7mm
    Finish brushed surface, polishing surface
    Shell's size (L*W*H) Customized
    Swing arm material Tempered glass or Acrylic (optional)
    Stretching out swing length 260mm~600mm
    The inductive card reader dimension equipped with the standard mounting brackets or tailor.
    Machine center Germany technological motor
    Power voltage AC220V±10%, 50Hz±10%
    Driver motor DC brush motor
    Main-board voltage 12V DC
    In-built Infrared 6 pairs/passageway
    Passing speed in normally open mode 50 persons/min
    Passing speed in normally closed mode 40 persons/min
    Passage Width 600mm ~1200mm
    Swing arm transmission angle 180°
    Swinging direction unidirectional or bi-directional
    Opening / closing time 0.1 seconds
    The time required to running state after power on 3 seconds
    Automatic reset time after the failure 1 seconds
    Mean time to failure min. 5 000 000
    Operation temperature -10℃ ~ +70℃
    Relative humidity less than 95% not condensed
    Working Environment Indoor/Outdoor (with rain-tent cover)
    Input port relay dry contact signal; +12V level signal, pulse width >100ms, DC12V pulse signal
    Communications port RS232/ RS485 electric standard, communications range ≤1200m. Available to connect with external CAN BUS and Ethernet



    OPTIONAL & CUSTOMIZED FUNCTIONS:

    • -> Alternative Materials, Finished and Custom Design

    • -> Usage LED Counter function

    • -> Audio and visual alarm in the event of an invalid entry or exit and tailgating

    • -> Remote Controlled Button

    • -> Extra add sensors transmitter and receiver type

    • -> Infrared sensors reset function

    • -> Access Control System Integration

    • -> Camera System Integratio


    PROJECTS:
    Stylish Clear Bi - Directional Turnstile Access Control With Swing Panel


    FACTORY:
    Stylish Clear Bi - Directional Turnstile Access Control With Swing Panel

    EXHIBITION:
    Bar Code Ticketing System Access Control Tripod Turnstile Gate of 304 stainless steel
